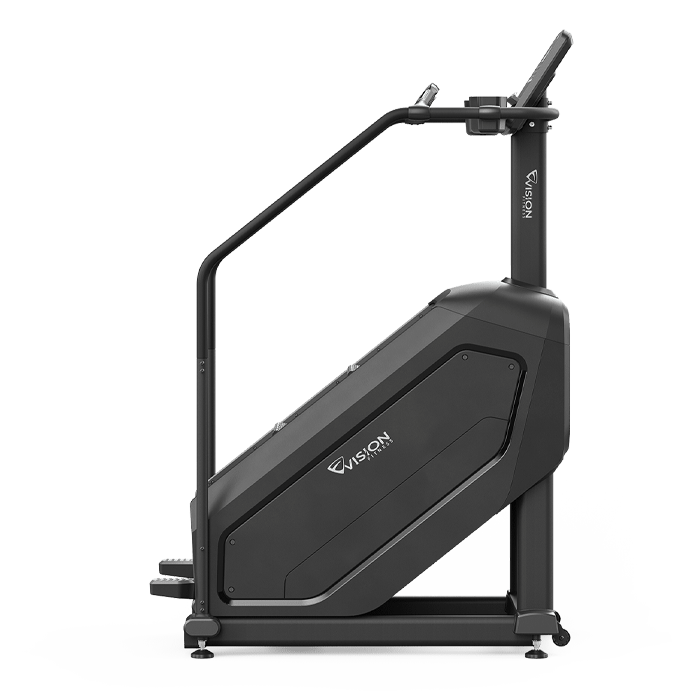

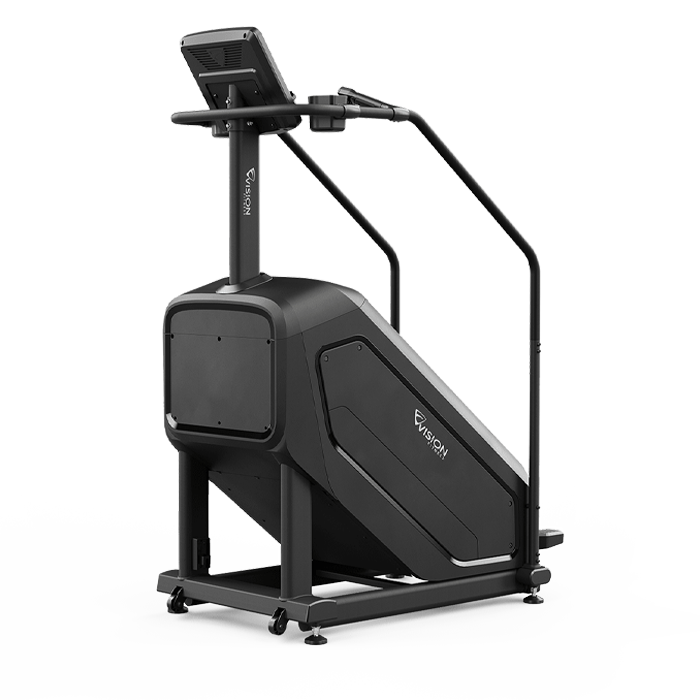

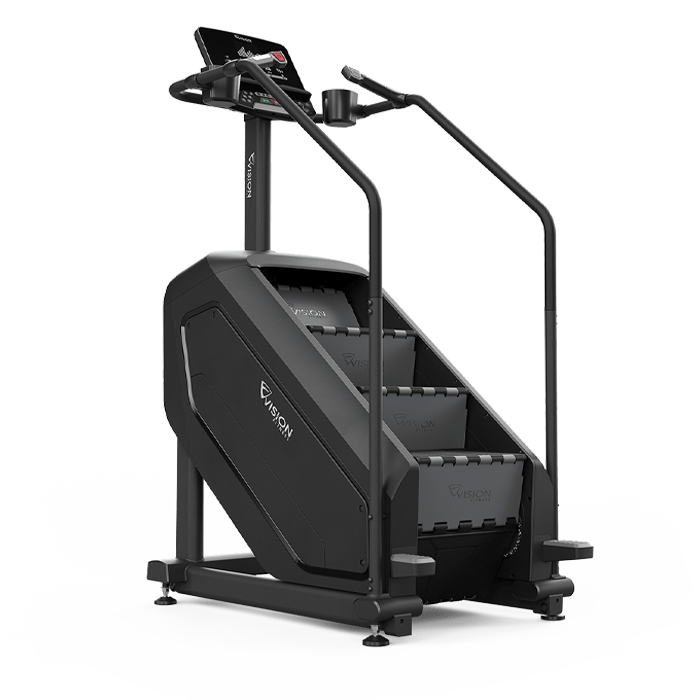

Vision Summit Stairclimber

$5,900.00

with DLED Console

For a contemporary exercise experience that fits your fitness facility, step up to our Summit Stairclimber. With a compact footprint that’s 10% smaller than competitors, it makes the most of your cardio floor with a sweat-resistant design built for intense workouts, lasting reliability and streamlined service. Proven innovations like infrared user detection, speed control and dual braking ensure secure, confident use in busy facilities. Add our Summit Stairclimber to elevate your offering with a modern fitness experience that works as hard as your exercisers do.

REQUEST QUOTE

Description

Product specifications

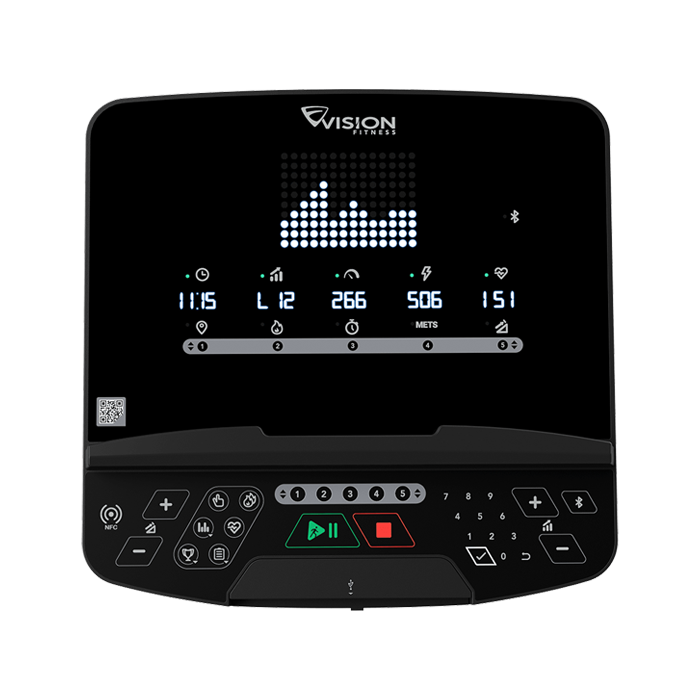

Console

Display

14 x 10 dot-matrix workout profile LEDs and 22 numeric LEDs

Workouts

Go, manual, fat burn, intervals, constant watts†, goal, target heart rate, fitness tests. Some of these programs may not be available on this frame.

Languages

English, German, French, Italian, Spanish, Dutch, Portuguese, Russian, Polish

WiFi

Optional: for connection to Vision Asset Management

Bluetooth

Yes: connection to Vision Fitness app, heart rate device or FTMSenabled fitness app

USB Port

Yes: USB-A for device charging and software updates

Workout Feedback

5 displays allow user to toggle between time and distance, resistance level and calories, steps and steps per minute (SPM), watts and METS, heart rate

NFC

Yes: one-tap connection to Vision Fitness app

Tablet Holder

Yes

QR Code

Yes: connects to console demonstration video and Vision Fitness app download link

Frame

Serviceability

Quick-replace repair shield cover

Extra

2 water bottle holders

Assembled Dimensions

141.8 x 82.4 x 207 cm / 55.8” x 32.4” x 81.5”

Auto-stop Function

Frame mounted IR and user detection

Contact & Telemetric HR

Yes

Drive System

ECB with industrial-grade drive chain and belt

Handlebar Design

Full-length handlebars

Maximum User Weight

182 kg / 400 lbs.

Minimum User Weight

45 kg / 99 lbs.

Power Requirements

100–240 V, 50/60Hz AC

Step Dimensions

27.3 x 45.9 x 19.8 cm / 11” x 18” x 8”

Step-on Height

25 cm / 9.8”

Levelers

Yes: 4 levelers

Resistance Range

25–169 steps/min

Assembled Weight

185 kg / 407 lbs

Shipping Weight

240 kg / 529 lbs

Resistance Levels

0–25

Recommended Ceiling Height

3 m / 10 ft
