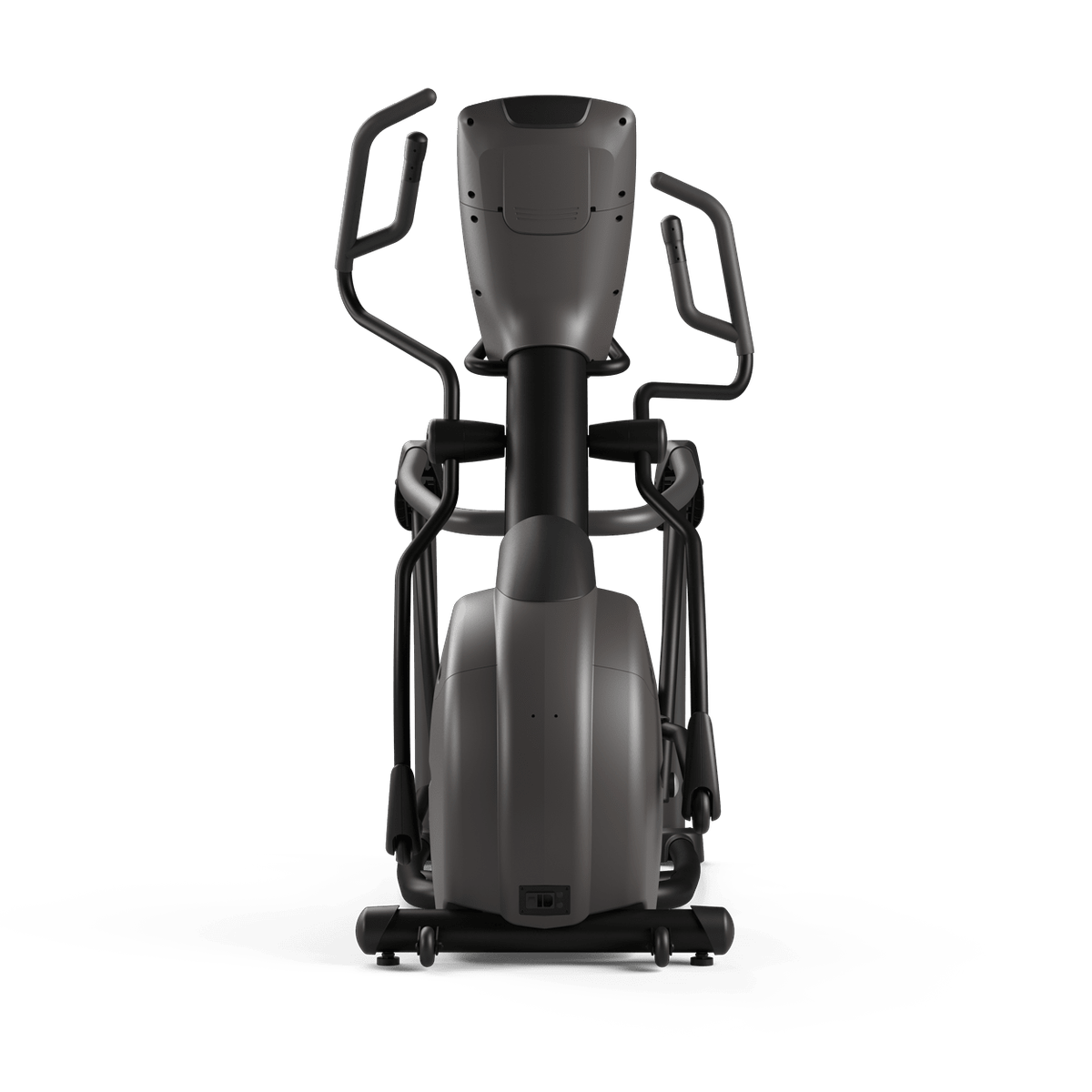

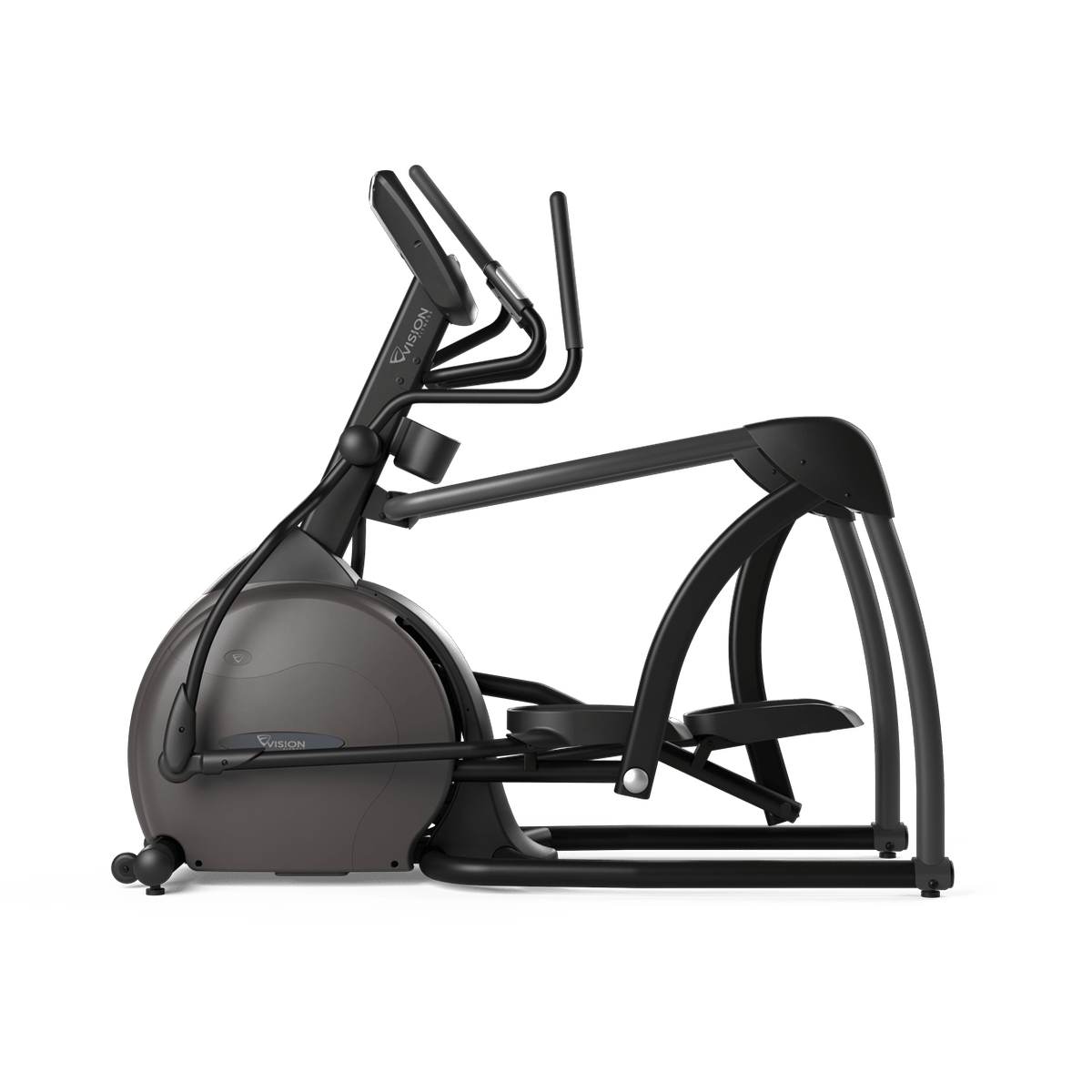

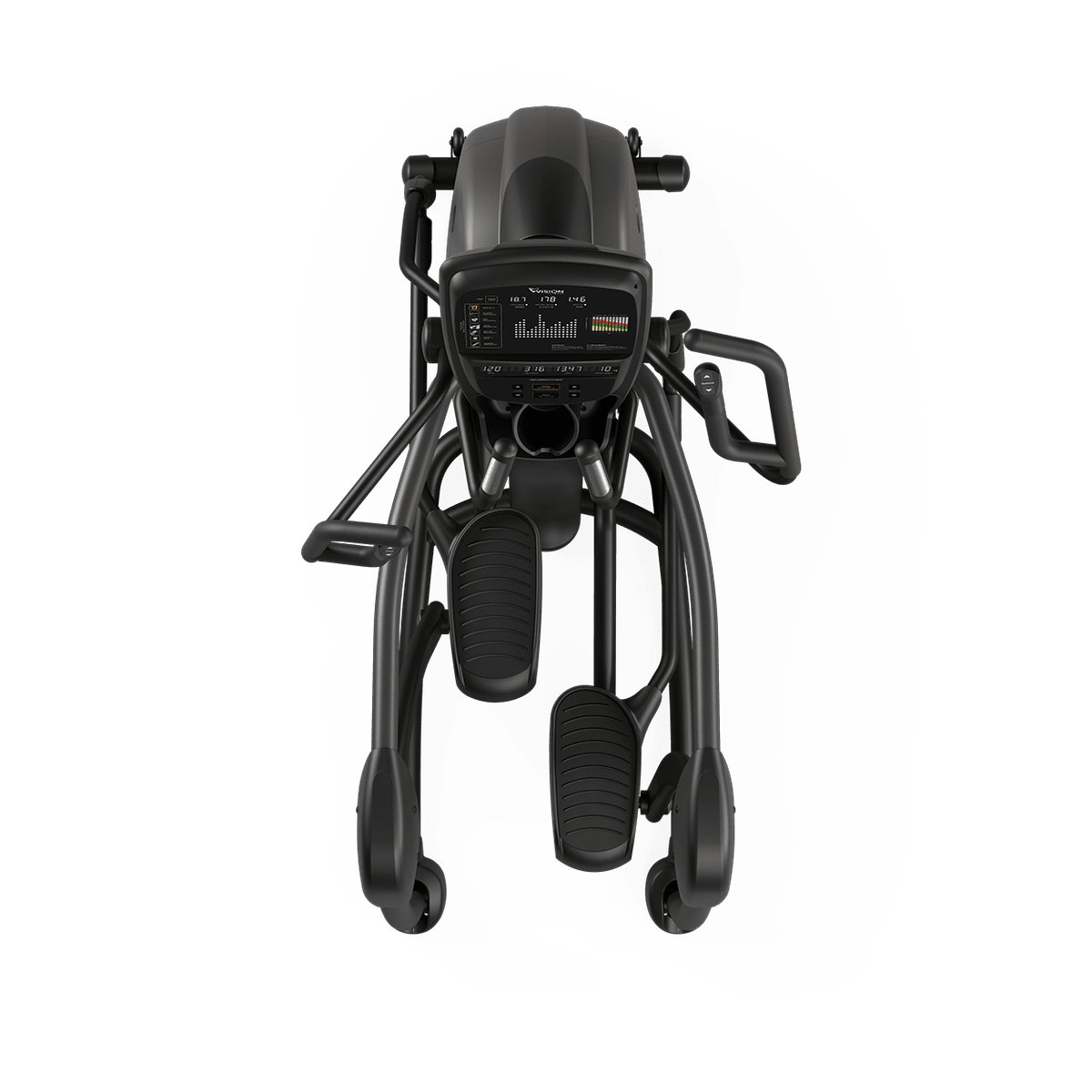

Vision S70 | S700E Ascent Trainer

The Ascent Trainer lets users of all sizes hop on and get a workout that feels like it was made just for them.

Frame

• Frame Type: Ascent Trainer
• Variable Stride Length: 51–58 cm / 20”–23”
• Step-on Height: 21.6 cm / 8.5”
• Power Incline: 15%–37%
• Resistance System: 2-stage generator
• Resistance Range: 1–20
• Pedal Type: Oversized with rubber inserts
• Pedal Spacing: 5.1 cm / 2”

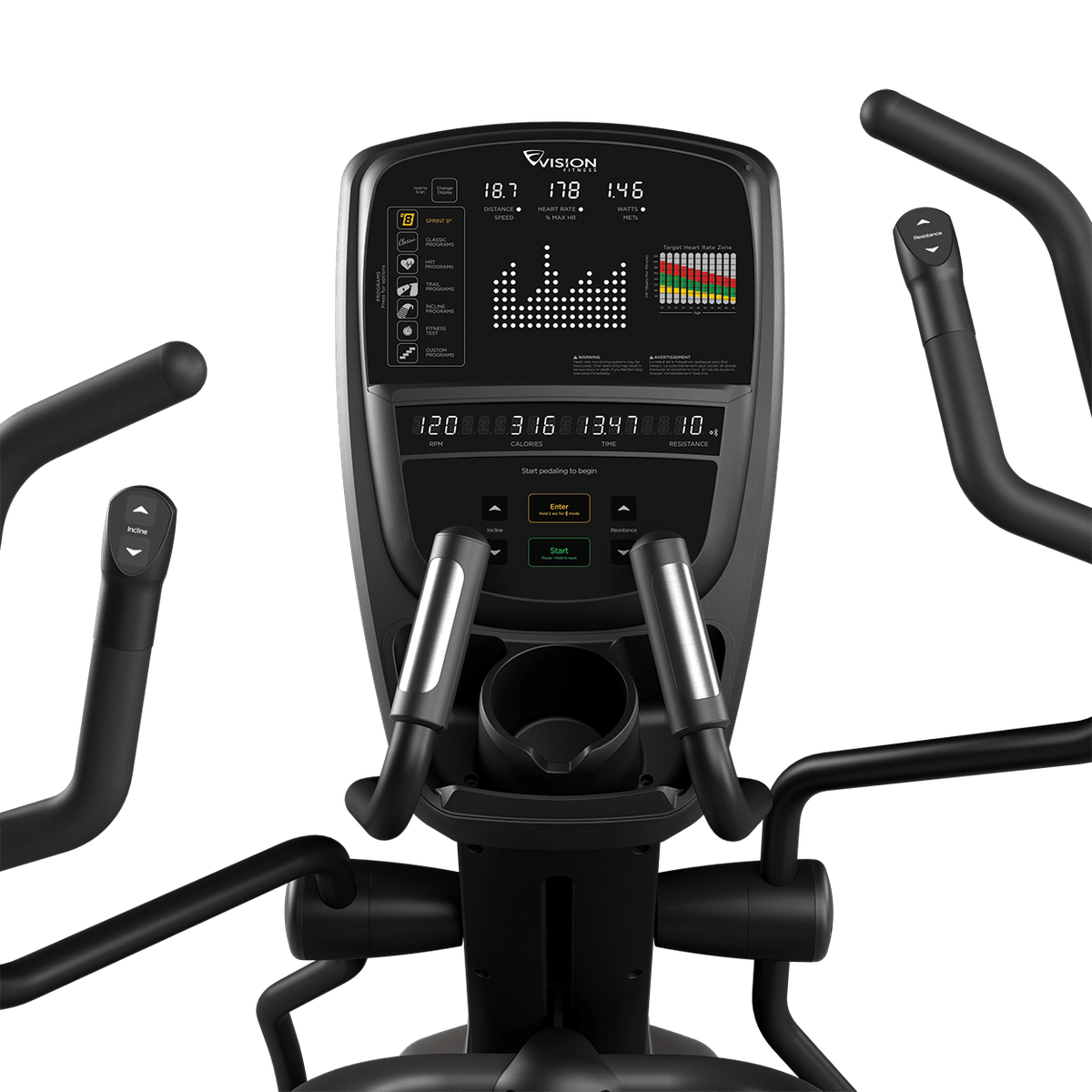

• Handlebar Design: Multi-position dual action with resistance/incline toggles, stationary with contact heart rate grips
• Extras: Water bottle holder, reading rack
• Assembled Dimensions: 191 x 89 x 173 cm / 75” x 35” x 68”
• Assembled Weight: 163.5 kg / 360 lbs.
• Max User Weight: 182 kg / 400 lbs.
• Power Requirements: 100–240 V — 50/60 Hz AC (may vary by region)
• Power Supply: NEMA 6–20 (220 V) or NEMA 5–15 (100–120 V) (may vary by region)

Model: S70 | S700E
