Description
Specifications
Product features and specifications subject to change.

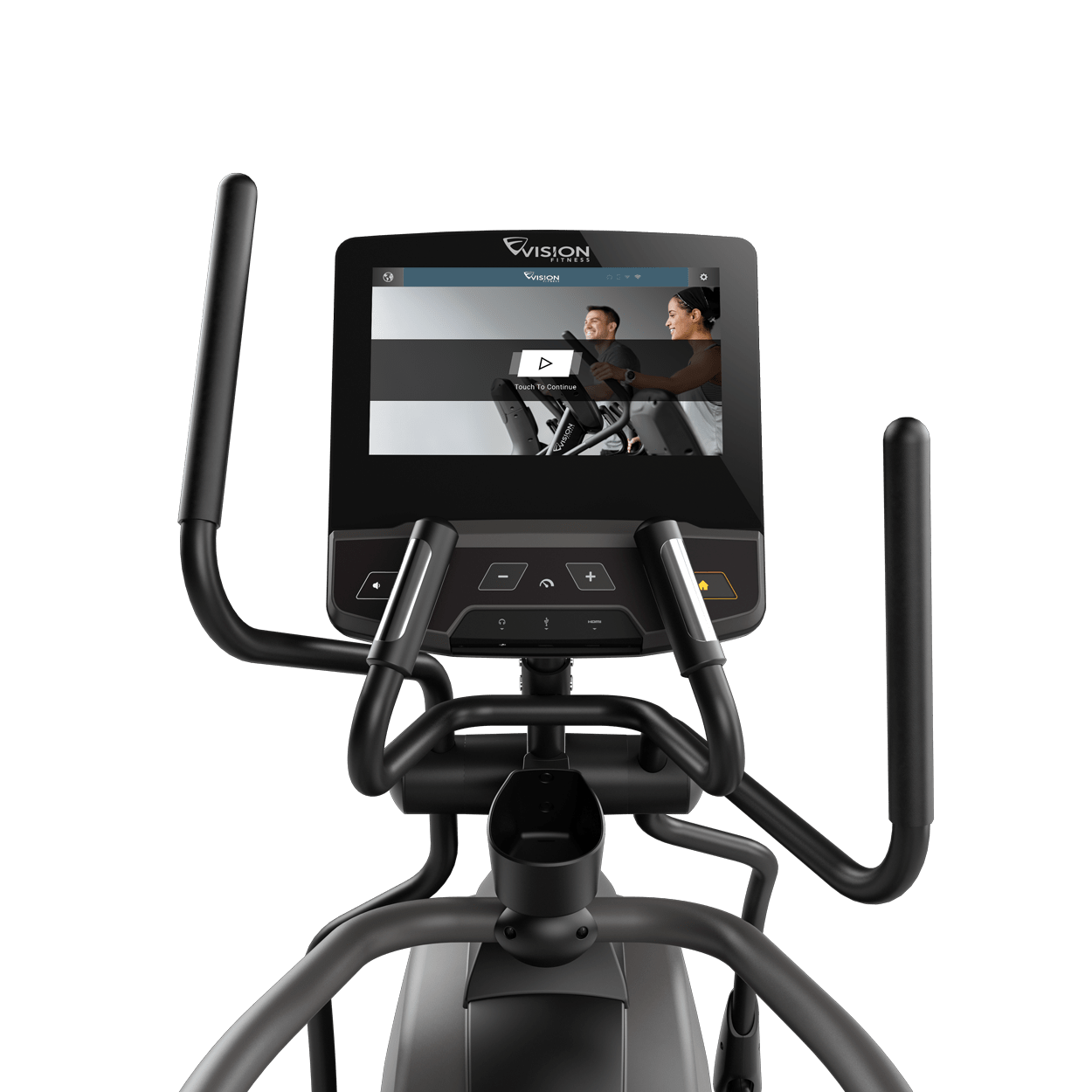

Console
Display
41 cm / 16” class capacitive touchscreen LCD
Programs
Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, time goal, distance goal, calorie goal, fitness test, custom
Heart Rate
Contact, telemetric, Bluetooth
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan
Analog TV
Optional: NTSC, PAL, SECAM
Digital TV
Optional: ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/S/S2/T/T2
Pro:Idiom Compatibility
Optional (via Coax)
WiFi
Yes
USB Port
Yes: device charging, device media, software updates
HDMI In Port
Yes: screen cast of smart devices that support HDMI out to console
Bluetooth
Yes: heart rate, headphones, FTMS transmits speed and other data to training apps
CSAFE
Yes
Frame
Frame Type
Suspension Elliptical Trainer
Stride Length
53.4 cm / 21”
Step-on Height
23 cm / 9”
Power Incline
No
Resistance System
2-stage generator
Resistance Range
1–25
Pedal Type
Oversized with rubber inserts
Pedal Spacing
5.1 cm / 2”
Handlebar Design
Dual action and stationary with heart rate grips
Extras
Water bottle holder, reading rack
Assembled Dimensions
186 x 75 x 164 cm / 74” x 29.5” x 64.5”
Assembled Weight
146.5 kg / 323 lbs.
Max User Weight
182 kg / 400 lbs.
Power Requirements
By power adapter, output: 12 V DC, 5 A (may vary by region)
